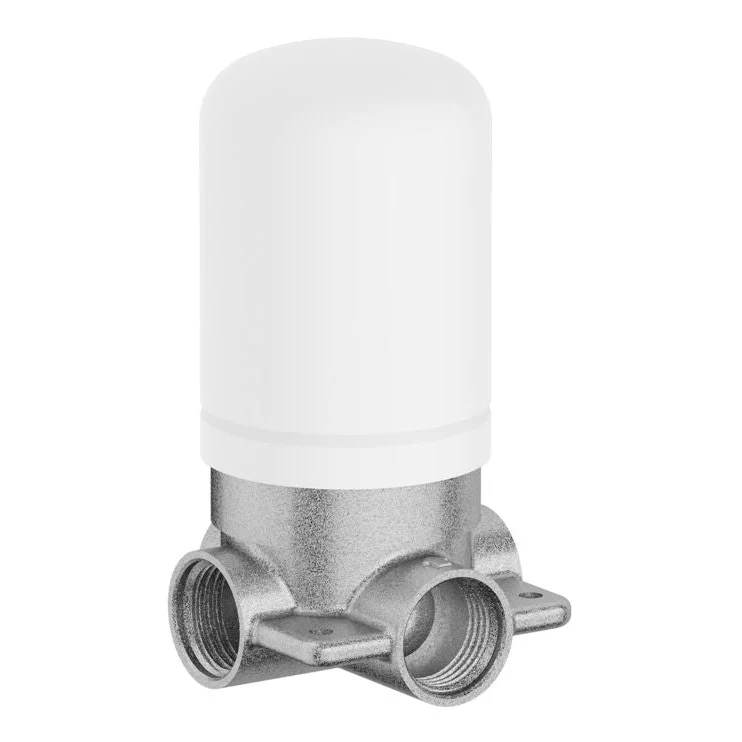

VitrA Origin Classic Concealed Part for Diverter – A42819

This concealed diverter body forms the functional core of VitrA’s Origin Classic shower systems. Designed for in-wall installation, it enables effortless switching between two water outlets—typically overhead and handshower—while maintaining the clean, minimal aesthetic of the Origin Classic collection. Compatible with VitrA’s V-Box system and Origin Classic trim kits in chrome, matt black, soft copper, brushed gold, and brushed nickel.

Key Features:

• Product Code: A42819
• Collection: Origin Classic
• Mounting Type: Concealed (in-wall)
• Finish: Chrome (concealed body only)
• Material: Brass

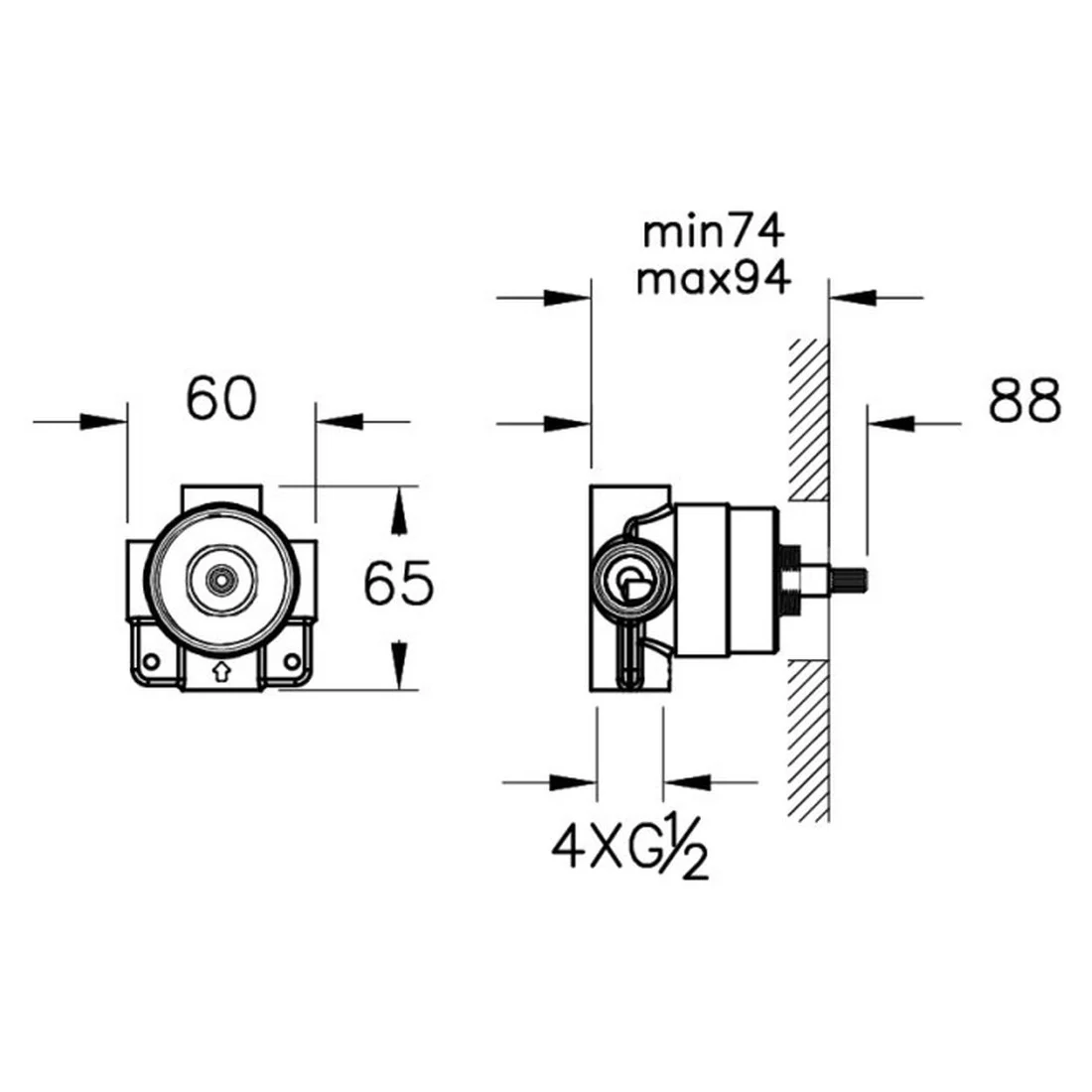

• Dimensions: H65 × W60 × D88 mm
• Packaged Size: W140 × D135 × H70 mm
• Water Inlet: Double inlet (G1/2")
• Hole Quantity: 5
• Number of Functions: 6
• Outlet Turning Angle: Fixed
• Operating Pressure: 0.5–10 bar
• Recommended Pressure: 1–5 bar
• Tap Pressure Type: Low Pressure
• Cartridge Type: Basic diverter
• Designer: VitrA Design Team
• Guarantee: 10 Years

Installation Notes: Supplied with technical drawings, 2D/3D CAD files, and assembly documents. Compatible with Origin Classic trim kits and VitrA V-Box concealed systems. WRAS approved.
