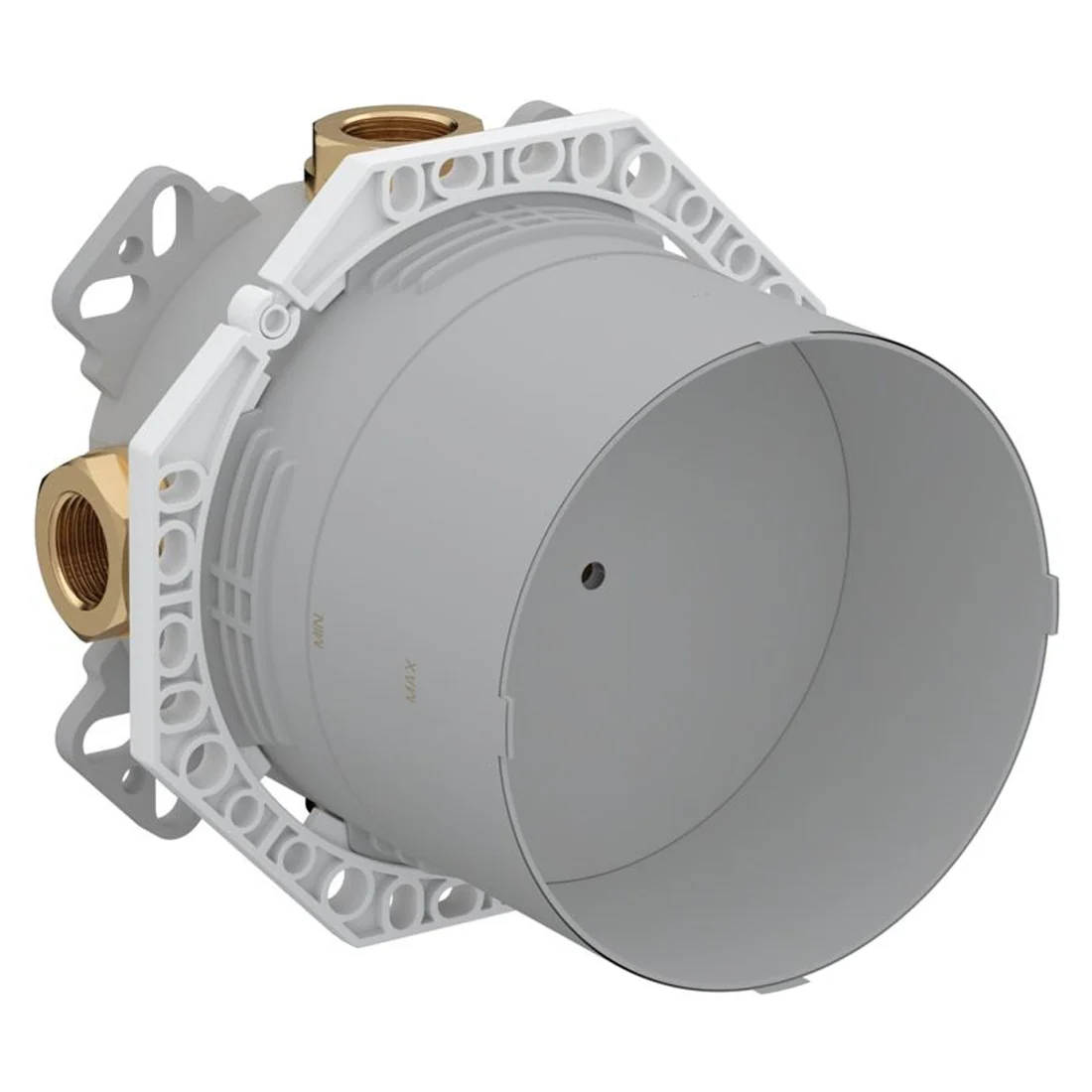

VitrA Thermostatic Concealed Valve for Built-in Showers – A42806

This universal concealed valve body from VitrA is engineered for use with a wide range of built-in thermostatic mixers and diverters, including 1-way and 2-way configurations. Made from solid brass and designed for low-pressure systems, it ensures safe, stable water temperature and flow control. Compatible with VitrA’s Origin, AquaHeat, and Bliss collections.

Key Features:

• Product Code: A42806
• Type: Universal concealed valve body
• Material: Brass
• Mounting Type: Built-in (concealed)
• Cartridge: Thermostatic with adjustable heat-flow rate
• Water Inlet: Double inlet (G1/2")
• Outlet Ports: 2–3 (supports diverter configurations)
• Hole Quantity: 5
• Number of Functions: Up to 6
• Outlet Turning Angle: Fixed
• Dimensions: H142 × W142 × D135 mm
• Packaged Size: W175 × D155 × H185 mm
• Operating Pressure: 0.5–10 bar
• Recommended Pressure: 1–5 bar
• Water Label Class: Red (flow rate >13)
• Designer: VitrA Design Team
• Guarantee: 10 Years

Installation Notes: Compatible with VitrA exposed parts including A42857, A4285734, A4285736WTC, and A43258EXP. Supplied with technical drawings, spare parts list, and BIM files. WRAS approved.
