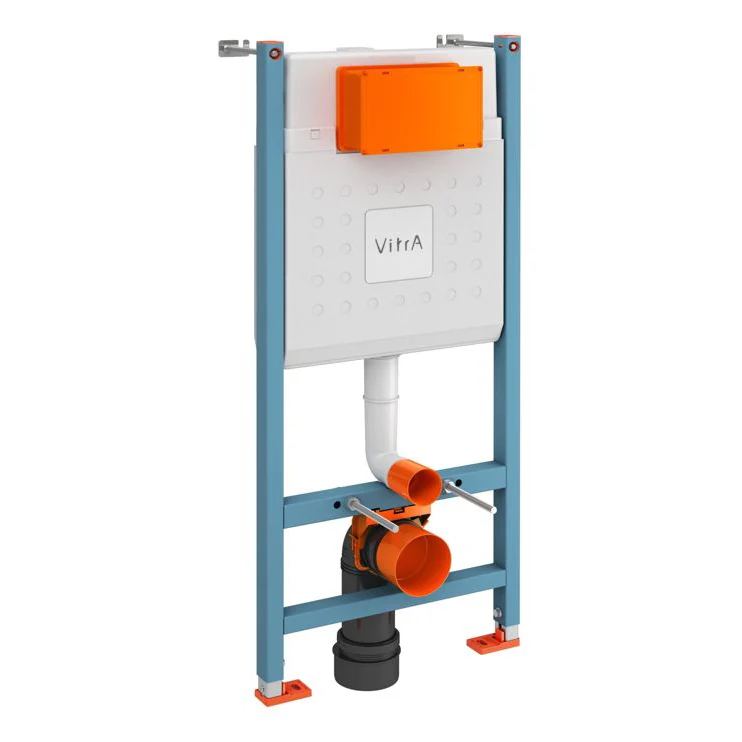

VitrA V-Fix Core WH WC Frame & 12cm 2.5/4L Cistern – 732-5805-02

This full-height wall-hung WC frame from VitrA’s V-Fix Core range is engineered for secure installations in drywall or stud wall environments. The integrated 12cm cistern delivers a low-volume dual flush (2.5L / 4L) for enhanced water efficiency, while the robust metal frame supports up to 400kg. Floor and wall fixation ensures long-term stability, and the cistern is accessible via the flush plate for easy maintenance.

Key Features:

• Product Code: 732-5805-02
• SKU: VTWP0063
• Frame Height: 1120mm
• Frame Width: 480mm
• Frame Depth: 132mm
• Cistern Thickness: 12cm
• Flush Volume: Dual flush 2.5L / 4L
• Mounting Type: Pre-wall (drywall or stud wall)
• Fixation: Floor and wall
• Water Connection: Top inlet
• Electric Connection: Not included
• Weight Capacity: Up to 400kg
• Maintenance: Accessible via flush plate
• Material: Plastic cistern body with metal frame
• Designer: VitrA Design Team
• Guarantee: 10 Years

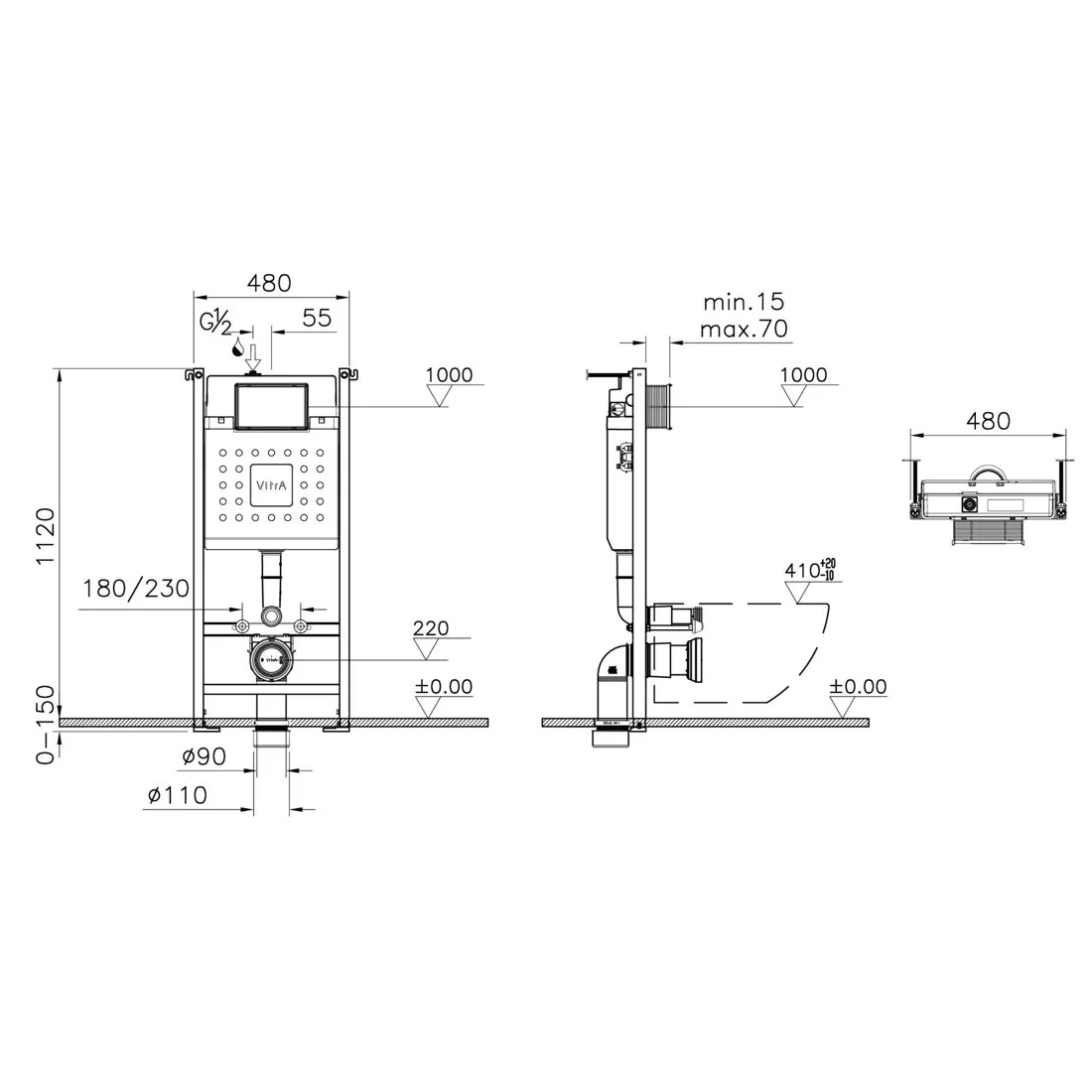

Installation Notes: Compatible with VitrA Core flush plates. Supplied with fixings, technical drawings, and BIM files. WRAS approved.
