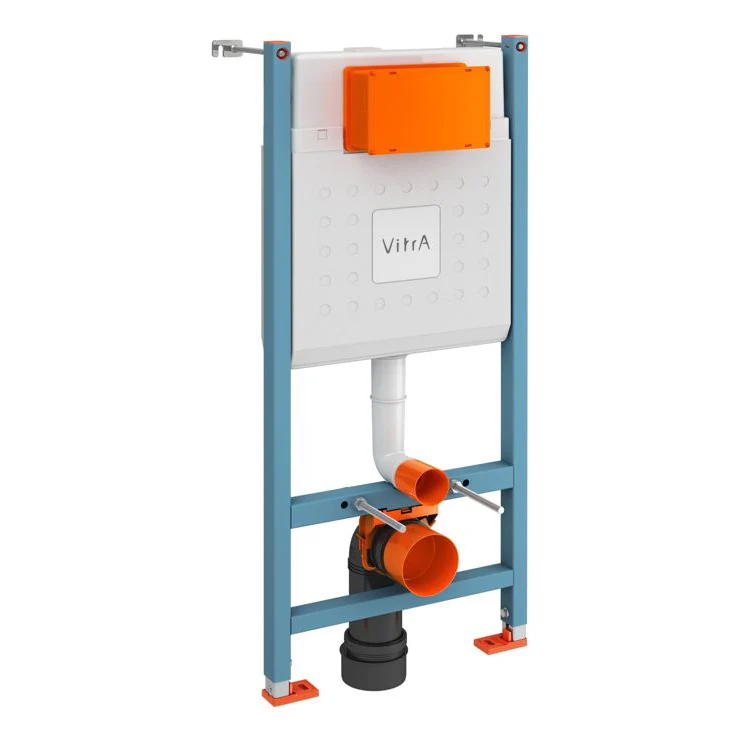

VitrA V-Fix Core WH WC Frame & 12cm 3/6L Cistern – 732-5805-01

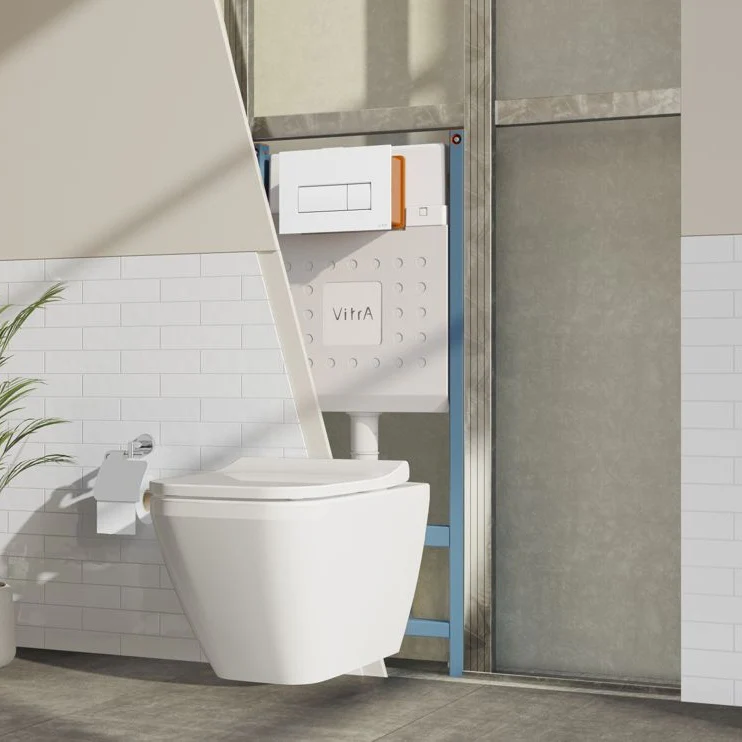

This full-height wall-hung WC frame from VitrA’s V-Fix Core range is designed for secure installations in drywall or stud wall environments. The integrated 12cm cistern delivers a dual flush (3L / 6L) for water efficiency, while the robust metal frame supports up to 400kg. Floor and wall fixation ensures long-term stability, and the cistern is accessible via the flush plate for easy maintenance.

Key Features:

• Product Code: 732-5805-01
• SKU: VTWP0062
• Frame Height: 1120mm
• Frame Width: 540mm
• Frame Depth: 120mm
• Cistern Thickness: 12cm
• Flush Volume: Dual flush 3L / 6L
• Mounting Type: Pre-wall (drywall or stud wall)
• Fixation: Floor and wall
• Water Connection: Top inlet
• Electric Connection: Not included
• Weight Capacity: Up to 400kg
• Maintenance: Accessible via flush plate
• Material: Plastic cistern body with metal frame
• Designer: VitrA Design Team
• Guarantee: 10 Years

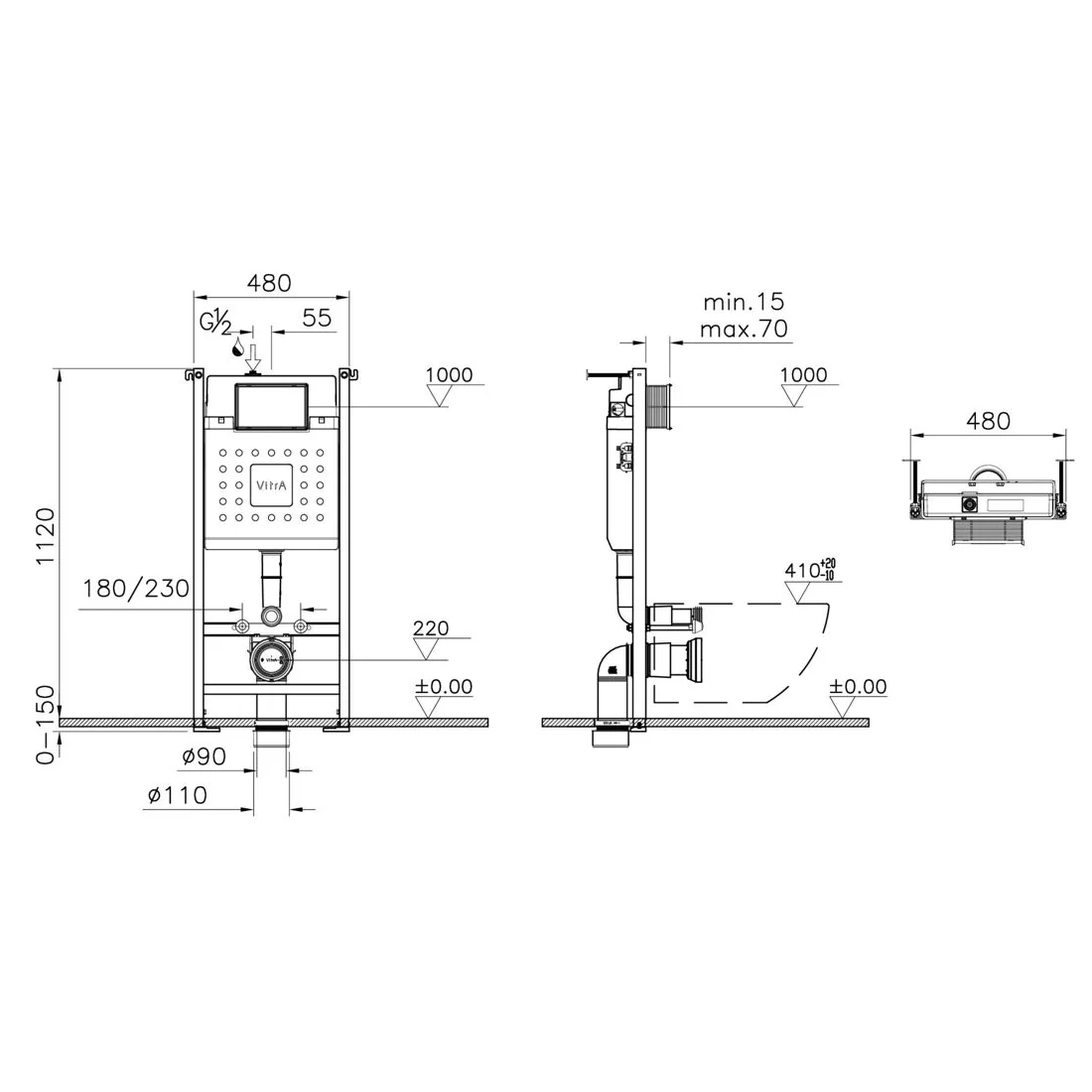

Installation Notes: Compatible with VitrA Core flush plates. Supplied with fixings, technical drawings, and BIM files. WRAS approved.
