VitrA V-Fix Core WH WC Frame & 8cm 3/6L Cistern – 738-5800-01

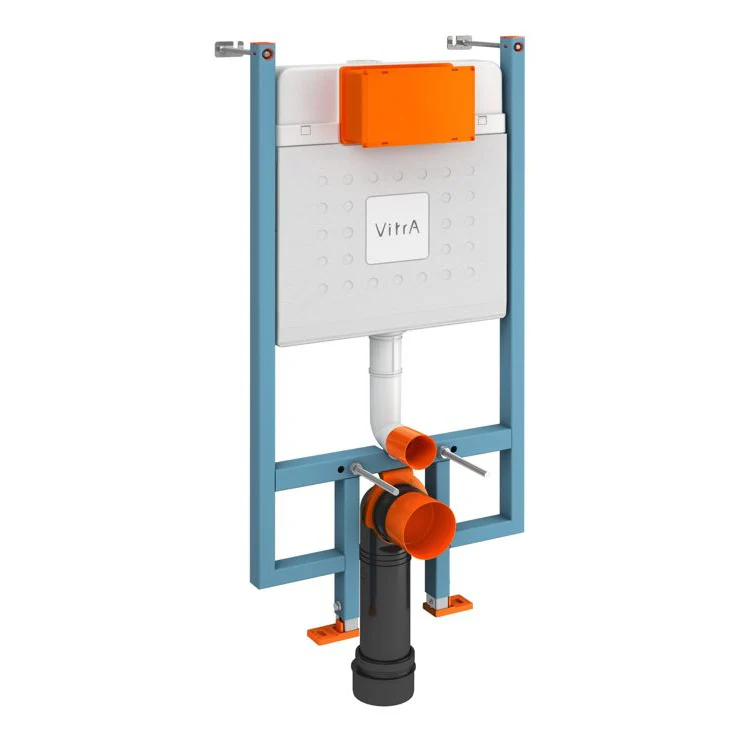

This slimline wall-hung WC frame from VitrA’s V-Fix Core range is engineered for space-saving installations in drywall or stud wall environments. With an 8cm concealed cistern and dual flush (3L / 6L), it offers water efficiency and minimalist integration. The frame provides robust support for wall-hung pans without requiring structural reinforcement.

Key Features:

• Product Code: 738-5800-01
• SKU: VTWP0061
• Frame Height: 1120mm
• Frame Width: 540mm
• Frame Depth: 120mm
• Cistern Thickness: 8cm
• Flush Volume: Dual flush 3L / 6L
• Mounting Type: Pre-wall (drywall or stud wall)
• Fixation: Floor and wall
• Water Connection: Top inlet
• Operating Pressure: 0.5–10 bar (recommended 1–5 bar)
• Weight Capacity: Up to 400kg
• Maintenance: Accessible via flush plate
• Material: Plastic cistern body with metal frame
• Designer: VitrA Design Team
• Guarantee: 10 Years

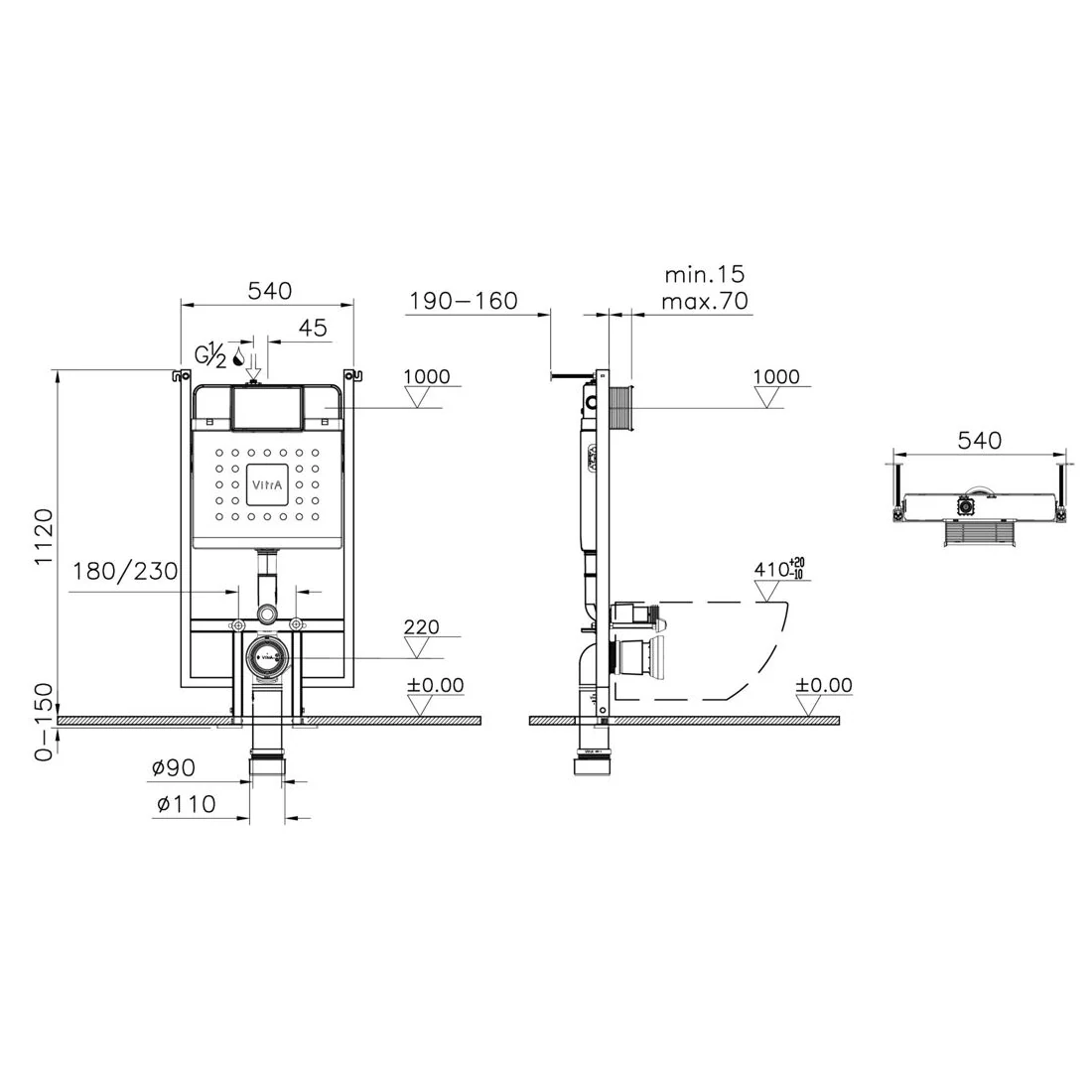

Installation Notes: Compatible with VitrA Core flush plates. Supplied with fixings, technical drawings, and BIM files. WRAS approved.
