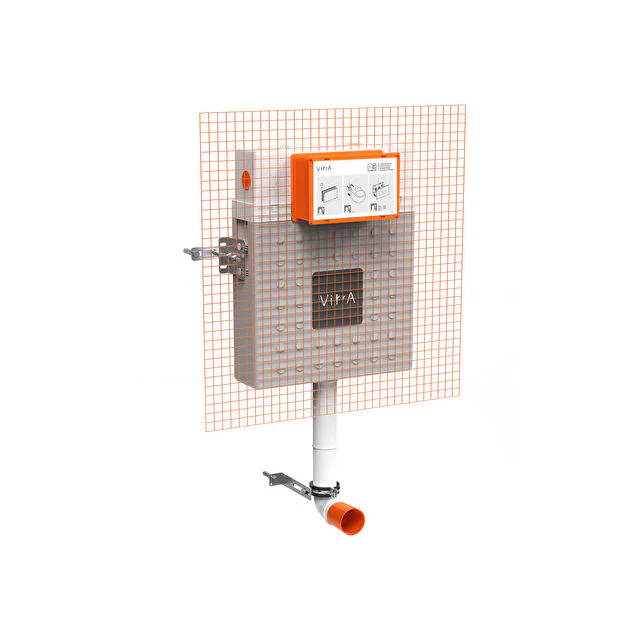

VitrA V-Fix Prime Back to Wall Concealed Cistern – 12cm – 2.5/4L

This full-depth concealed cistern from VitrA’s V-Fix Prime range is engineered for back-to-wall WC installations in wet wall or drywall environments. With a 12cm depth and low-volume dual flush (2.5L / 4L), it supports water conservation while maintaining reliable performance. Maintenance is simple via the flush plate, preserving wall finishes and access integrity.

Key Features:

• Product Code: 762-1735-02
• SKU: VTWP0047
• Dimensions: H 720mm × W 474mm × D 120mm
• Flush Volume: Dual flush 2.5L / 4L
• Mounting Type: In-wall (wet wall or stud wall)
• Water Inlet: Top connection
• Operating Pressure: 0.5–10 bar (recommended 3–5 bar)
• Material: Plastic cistern body
• Maintenance: Accessible via flush plate
• Flush Plate Compatibility: VitrA standard and Prime flush plates
• Reliability: Tested to 200,000 flushes
• Guarantee: 10 Years

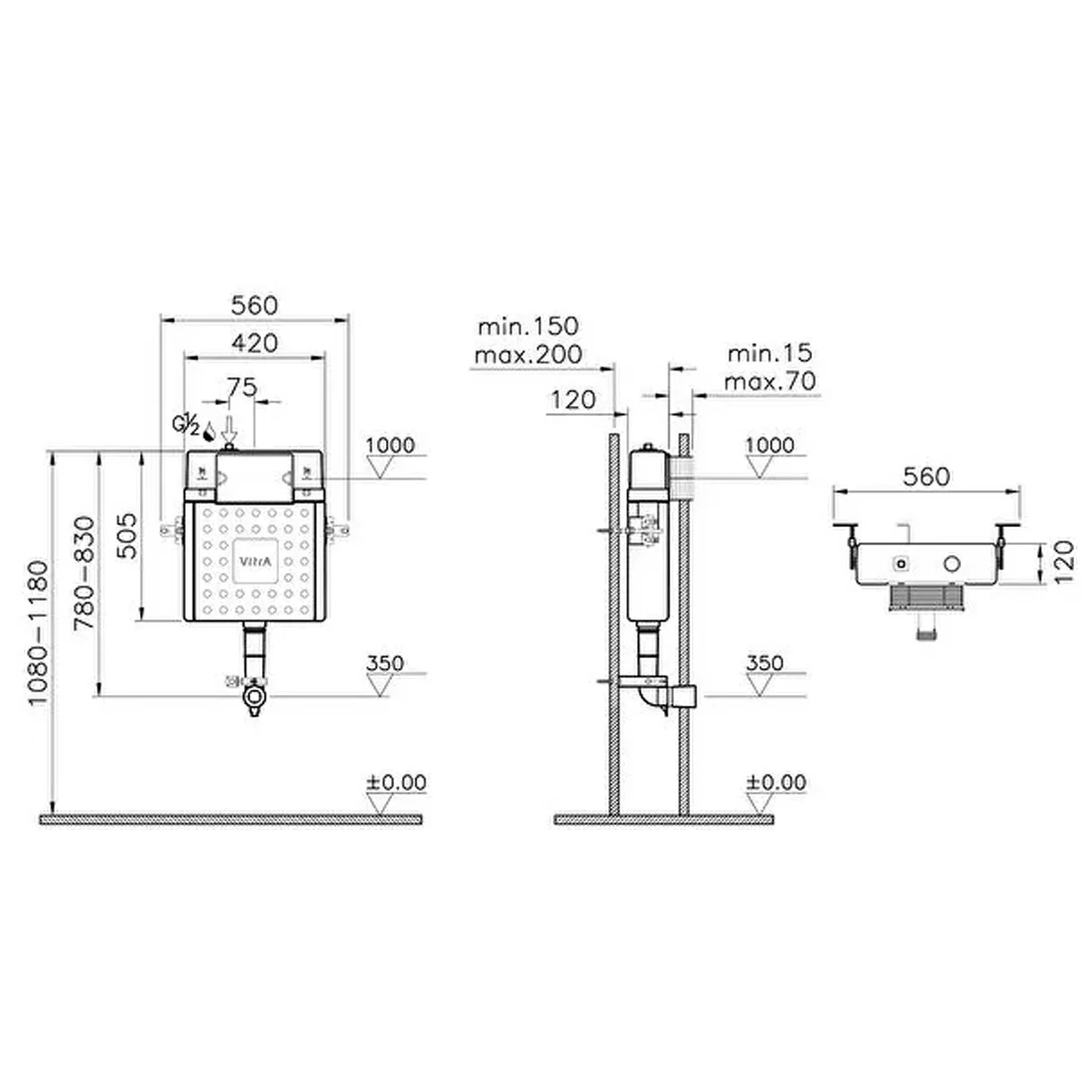

Installation Notes: Designed for back-to-wall pans only. Supplied with fixings, technical drawings, and BIM files. WRAS approved.
