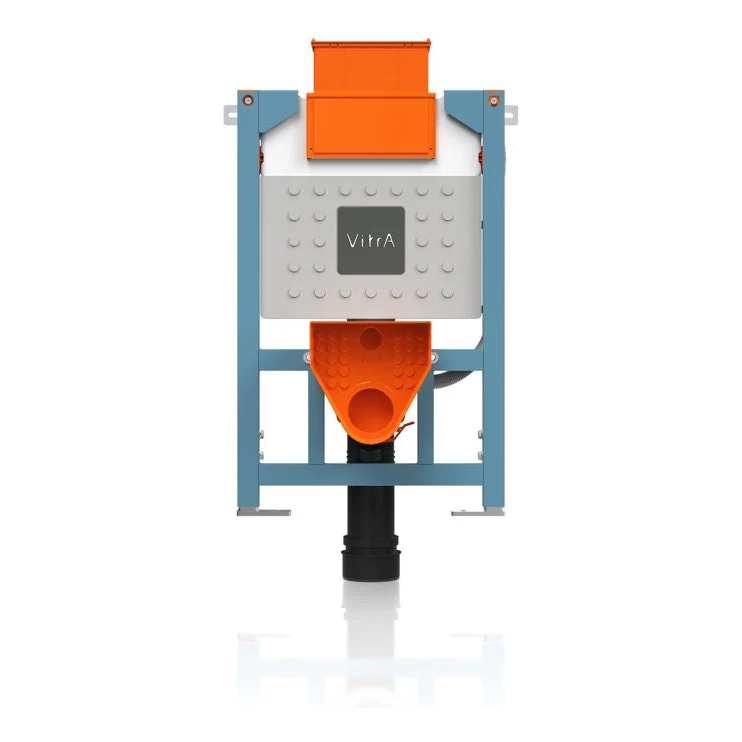

VitrA V-Fix Prime WH WC Frame & 3/6L Cistern – Reduced Height 82cm – Floor/Wall Fix

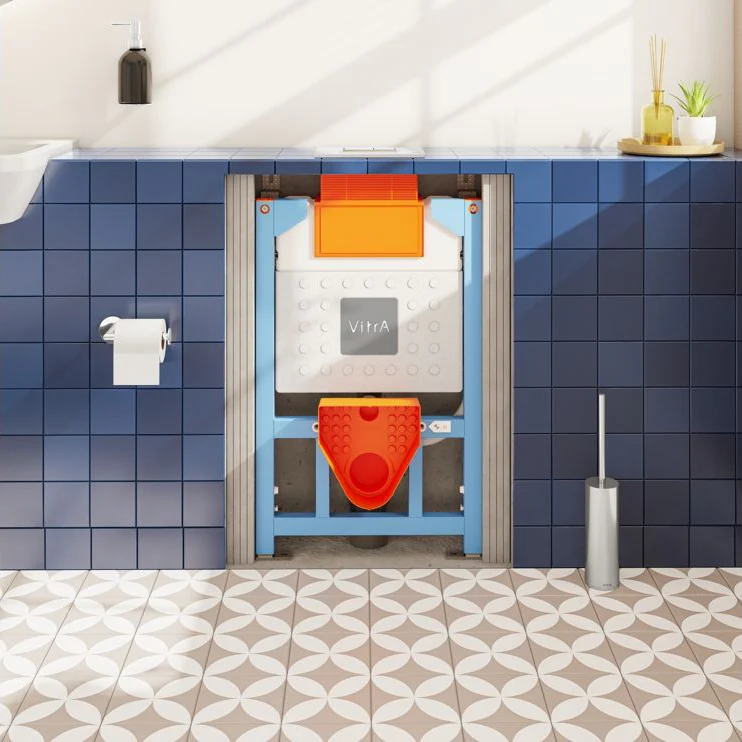

This compact wall-hung WC frame from VitrA’s V-Fix Prime range is engineered for installations with restricted vertical clearance. At just 820mm tall, it fits comfortably beneath windows or within loft spaces, while maintaining full compatibility with standard wall-hung pans. The integrated 12cm cistern delivers a dual flush (3L / 6L) and is accessible via the flush plate for easy maintenance. Dual fixation ensures secure mounting in drywall or stud wall environments.

Key Features:

• Product Code: 761-5805-01UK
• SKU: VTWP0060
• Frame Height: 820mm
• Frame Width: 555mm
• Frame Depth: 120mm
• Cistern Thickness: 12cm
• Flush Volume: Dual flush 3L / 6L
• Mounting Type: Pre-wall (drywall or stud wall)
• Fixation: Floor and wall
• Electric Connection: Not included
• Water Connection: Top or rear inlet
• Weight Capacity: Up to 400kg
• Maintenance: Accessible via flush plate
• Material: Plastic cistern body with metal frame
• Designer: VitrA Design Team
• Guarantee: 10 Years

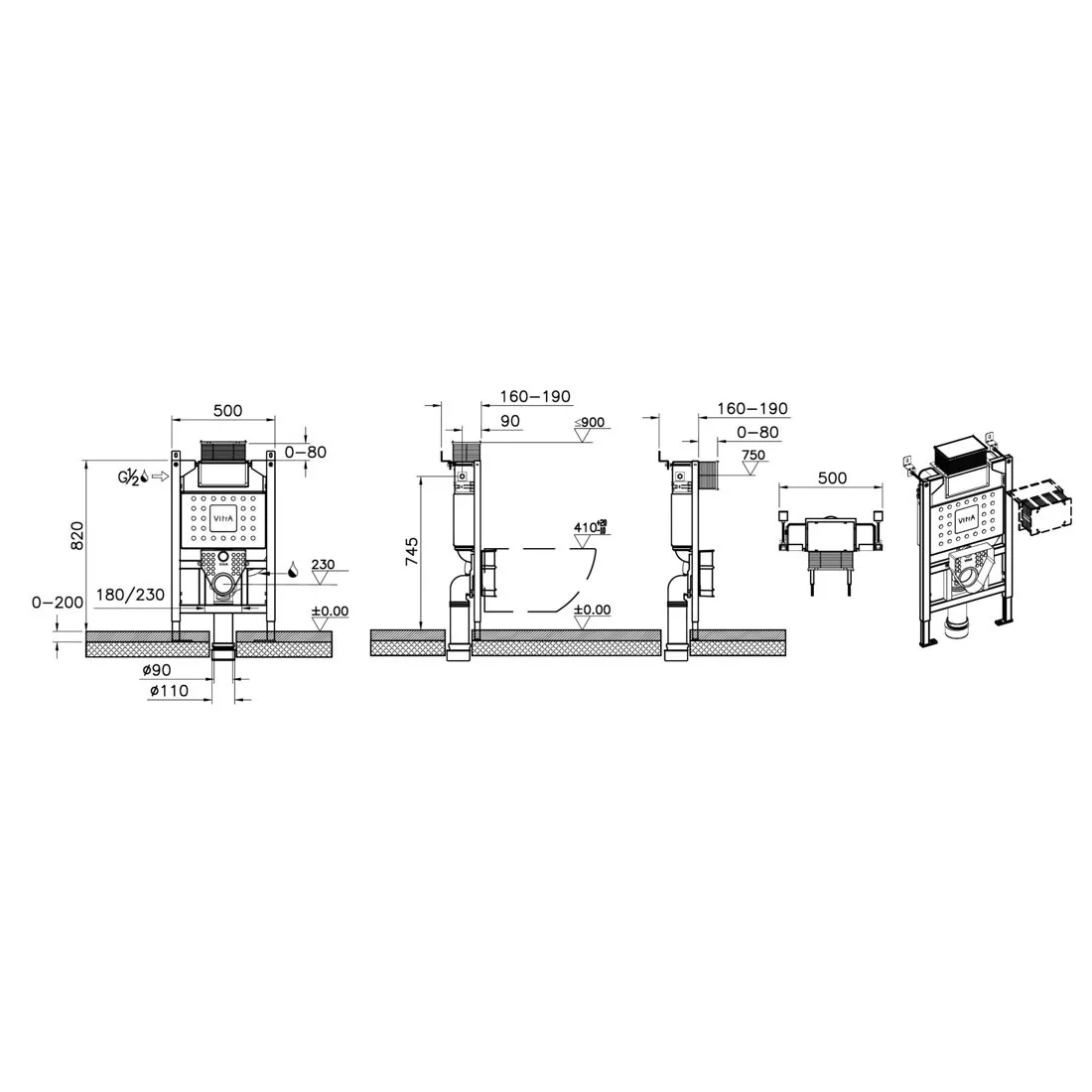

Installation Notes: Ideal for low-height spaces. Compatible with VitrA Prime flush plates. Supplied with fixings, technical drawings, and BIM files. WRAS approved.
