VitrA V-Fix Prime WH WC Frame & 3/6L Cistern – Reduced Height 98cm – Floor/Wall Fix

This reduced-height wall-hung WC frame from VitrA’s V-Fix Prime range is designed for compact installations where vertical space is limited. With a frame height of just 980mm and dual fixation (floor and wall), it offers secure mounting and compatibility with standard wall-hung pans. The integrated cistern delivers a dual flush (3L / 6L) for water efficiency and is accessible via the flush plate for maintenance.

Key Features:

• Product Code: 761-5825-01UK
• SKU: VTWP0059
• Frame Height: 980mm
• Frame Width: 555mm
• Frame Depth: 120mm
• Cistern Thickness: 12cm
• Flush Volume: Dual flush 3L / 6L
• Mounting Type: Pre-wall (drywall or stud wall)
• Fixation: Floor and wall
• Water Connection: Top or rear inlet
• Electric Connection: Not included
• Weight Capacity: Up to 400kg
• Maintenance: Accessible via flush plate
• Material: Plastic cistern body with metal frame
• Designer: VitrA Design Team
• Guarantee: 10 Years

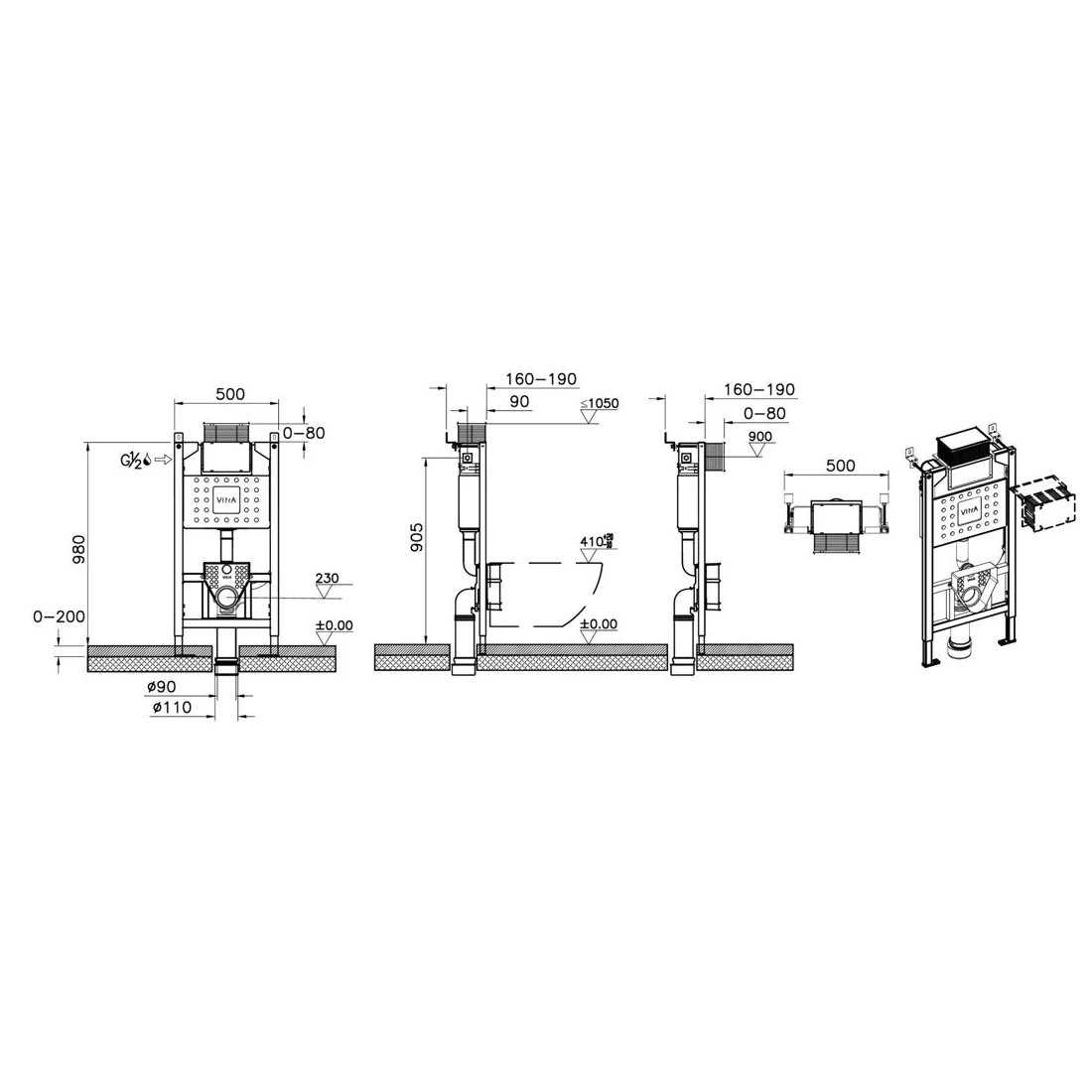

Installation Notes: Ideal for under-window or loft spaces. Compatible with VitrA Prime flush plates. Supplied with fixings, technical drawings, and BIM files. WRAS approved.
