VitrA V-Fix Prime WH WC Frame & 12cm 2.5/4L Cistern – Floor/Wall Fix + Electric & Water Connection

This full-height wall-hung WC frame from VitrA’s V-Fix Prime range is designed for robust installations in drywall or stud wall environments. The integrated 12cm cistern delivers a low-volume dual flush (2.5L / 4L) for enhanced water efficiency, while the electric and water connections enable compatibility with VitrA’s smart flush plates and automated systems. Floor and wall fixation ensures long-term stability and load-bearing performance.

Key Features:

• Product Code: 762-5805-02
• SKU: VTWP0056
• Frame Height: 1120mm
• Frame Width: 555mm
• Frame Depth: 120mm
• Cistern Thickness: 12cm
• Flush Volume: Dual flush 2.5L / 4L
• Mounting Type: Pre-wall (drywall or stud wall)
• Fixation: Floor and wall
• Electric Connection: Yes (flush plate compatible)
• Water Connection: Top or rear inlet
• Weight Capacity: Up to 400kg
• Maintenance: Accessible via flush plate
• Material: Plastic cistern body with metal frame
• Designer: VitrA Design Team
• Guarantee: 10 Years

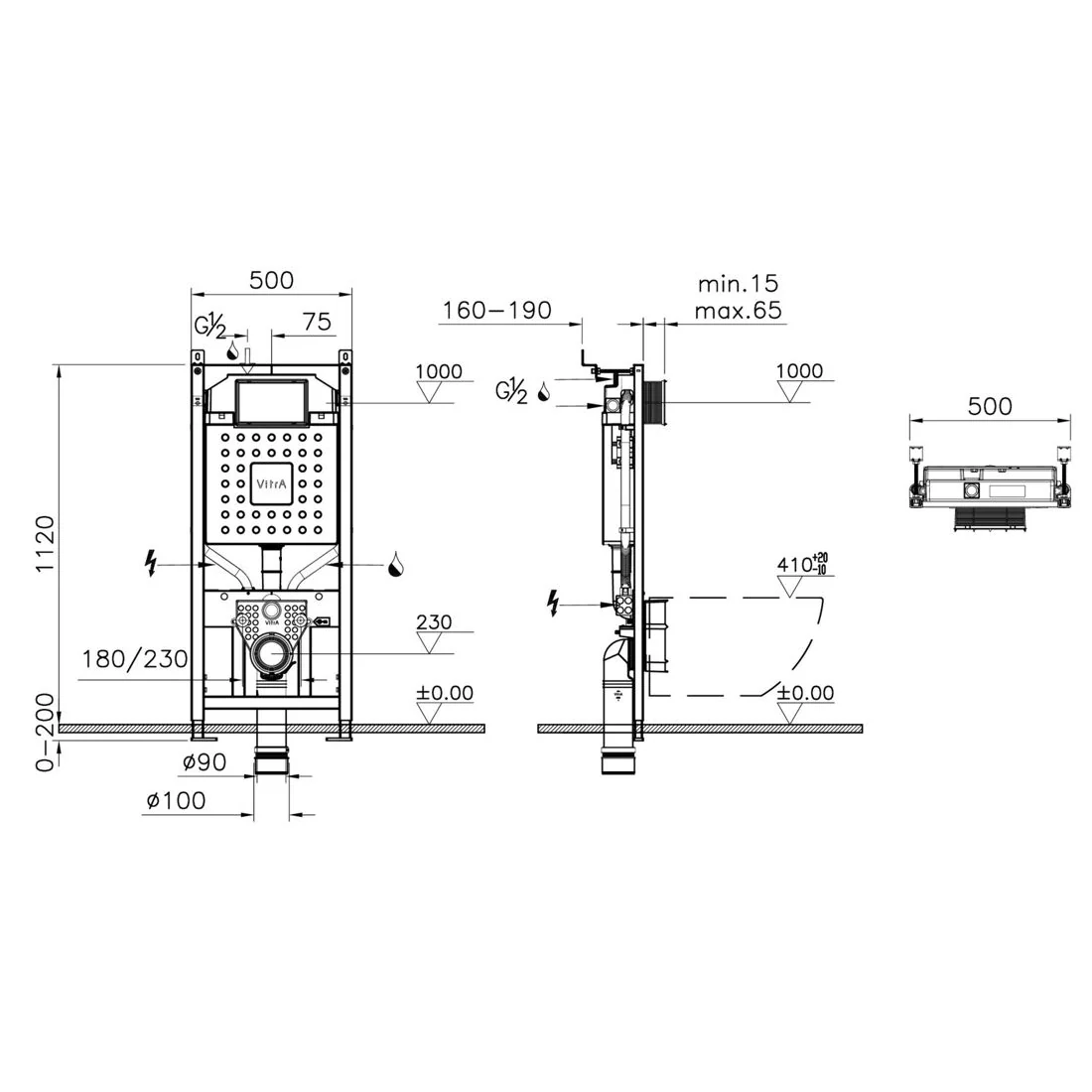

Installation Notes: Compatible with VitrA Prime and smart flush plates. Supplied with fixings, technical drawings, and BIM files. WRAS approved.
