VitrA V-Fix Prime WH WC Frame & 8cm 2.5/4L Cistern – Floor Fix + Electric Connection

This full-height wall-hung WC frame from VitrA’s V-Fix Prime range is designed for secure floor-fixed installations in drywall or stud wall environments. The integrated 8cm cistern offers a low-volume dual-flush system (2.5L / 4L) for enhanced water efficiency, while the electric connection supports smart flush plate compatibility. Ideal for eco-conscious, future-ready bathroom schemes.

Key Features:

• Product Code: 768-4800-02
• SKU: VTWP0049
• Frame Height: 1120mm
• Frame Width: 555mm
• Frame Depth: 85–90mm
• Cistern Thickness: 8cm
• Flush Volume: Dual flush 2.5L / 4L
• Mounting Type: Pre-wall (drywall or stud wall)
• Fixation: Floor only
• Electric Connection: Yes (flush plate compatible)
• Water Inlet: Top connection
• Weight Capacity: Up to 400kg
• Maintenance: Accessible via flush plate
• Material: Plastic cistern body with metal frame
• Designer: VitrA Design Team
• Guarantee: 10 Years

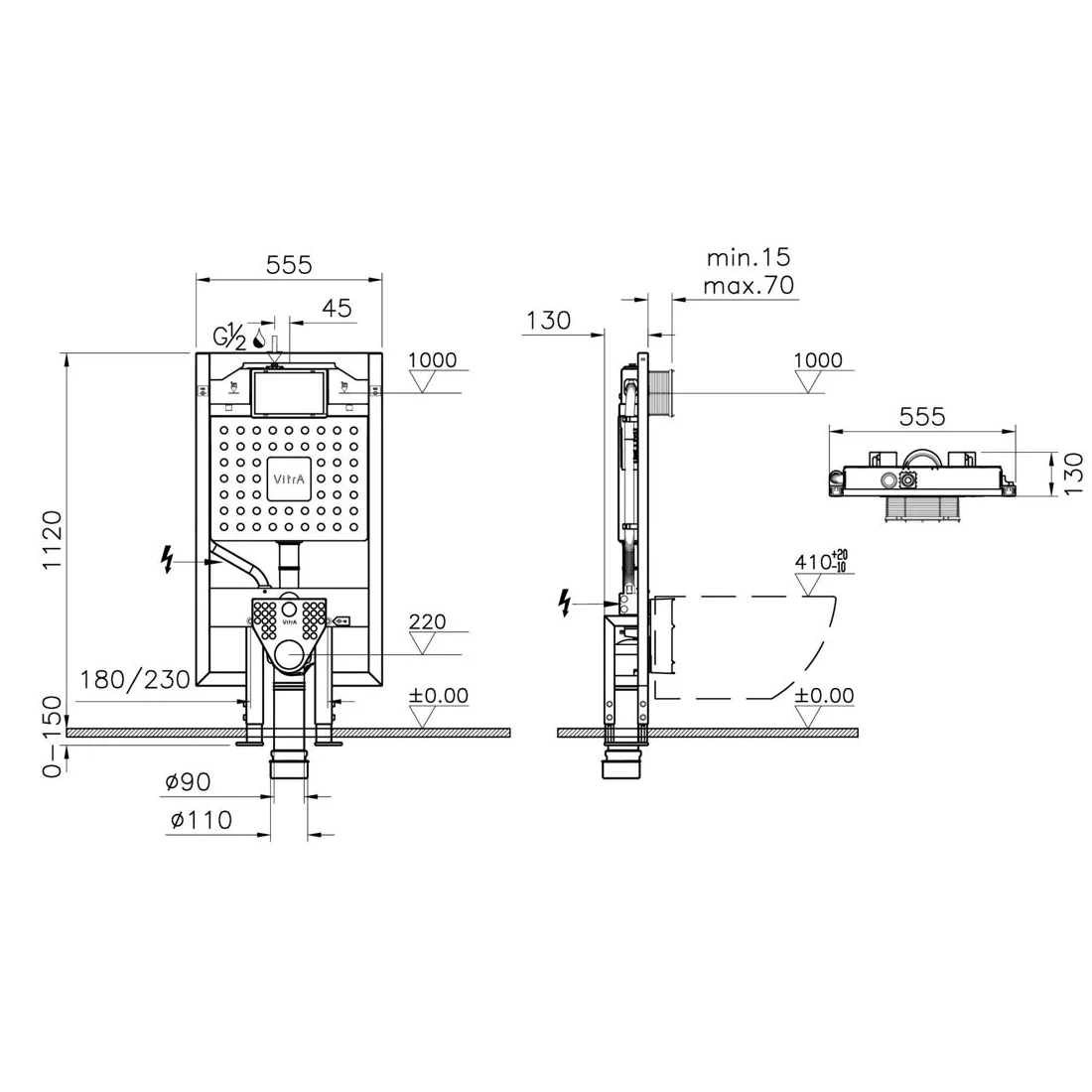

Installation Notes: Compatible with VitrA Prime and smart flush plates. Supplied with fixings, technical drawings, and BIM files. WRAS approved.
