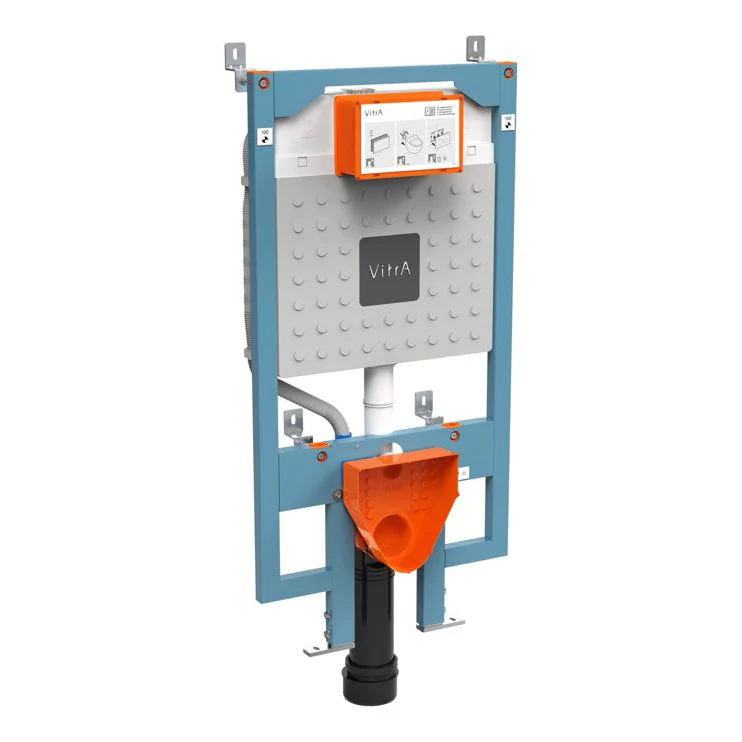

VitrA V-Fix Prime WH WC Frame & 8cm 3/6L Cistern

This full-height wall-hung WC frame from VitrA’s V-Fix Prime range is designed for secure, high-performance installations in drywall or stud wall environments. The integrated 8cm cistern offers a dual-flush 3/6 litre system for water efficiency, while the frame supports floor and wall fixation and includes an electric connection for smart flush plate compatibility.

Key Features:

• Product Code: 768-5800-01
• SKU: VTWP0040
• Frame Height: 1120mm
• Frame Width: 555mm
• Frame Depth: 85–90mm
• Cistern Thickness: 8cm
• Flush Volume: Dual flush 3L / 6L
• Mounting Type: Pre-wall (drywall or stud wall)
• Fixation: Floor and wall
• Electric Connection: Yes (flush plate compatible)
• Water Inlet: Top connection
• Weight Capacity: Up to 400kg
• Maintenance: Accessible via flush plate
• Material: Plastic cistern body with metal frame
• Designer: VitrA Design Team
• Guarantee: 10 Years

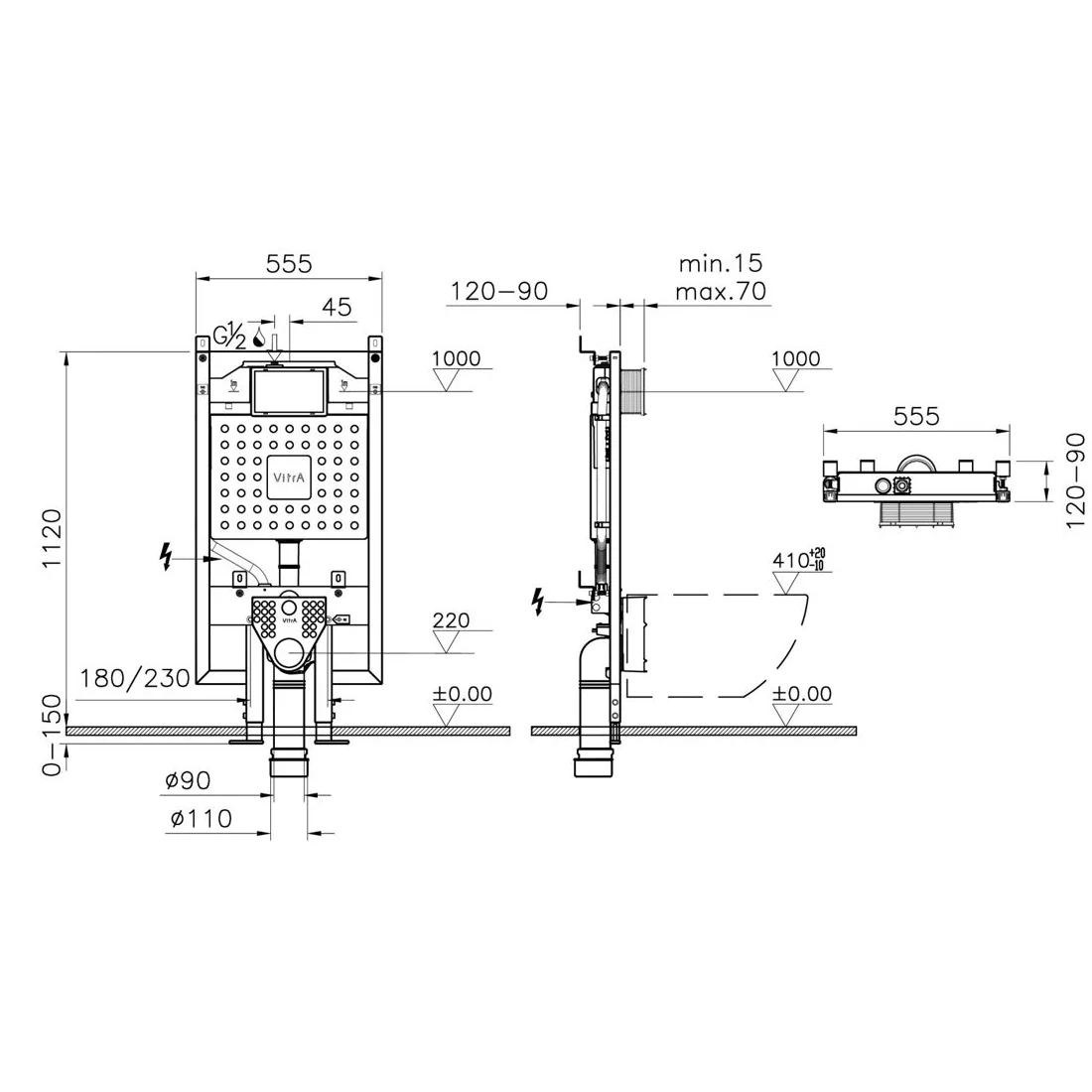

Installation Notes: Compatible with VitrA Prime and smart flush plates. Supplied with fixings, technical drawings, and BIM files. WRAS approved.
